This project reimagines the traditional pill bottle through both functionality and aesthetics. Designed to release one pill at a time with greater ease and control, the bottle challenges conventional dispensing systems while introducing a more approachable and playful visual experience. The project explores how everyday healthcare objects can become more intuitive, engaging, and user-centered.

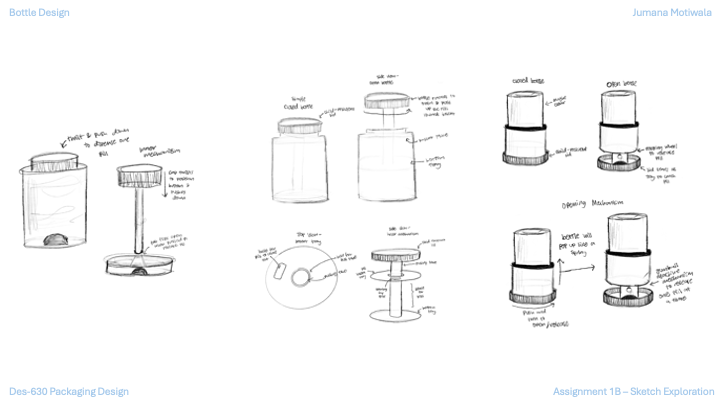

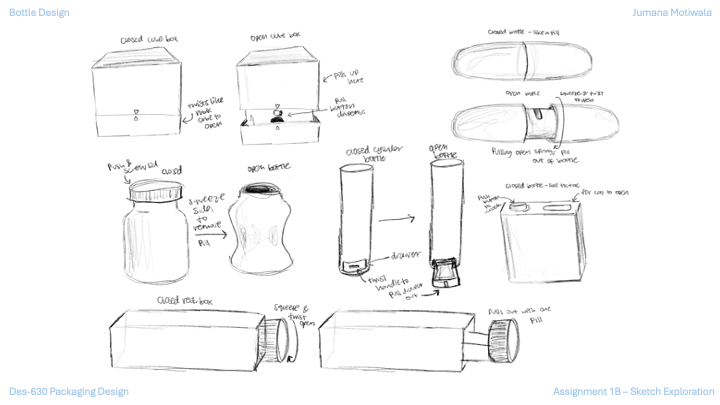

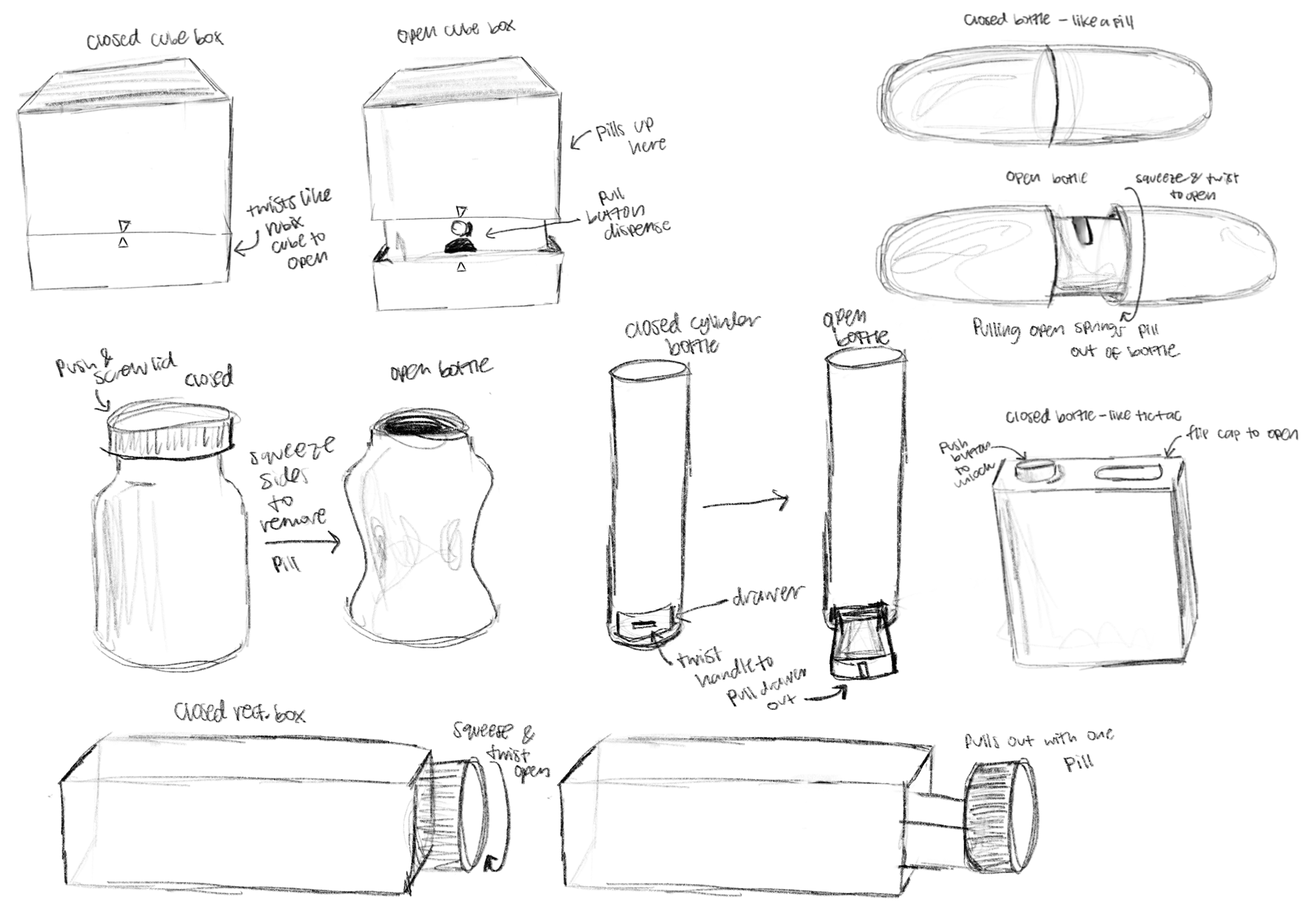

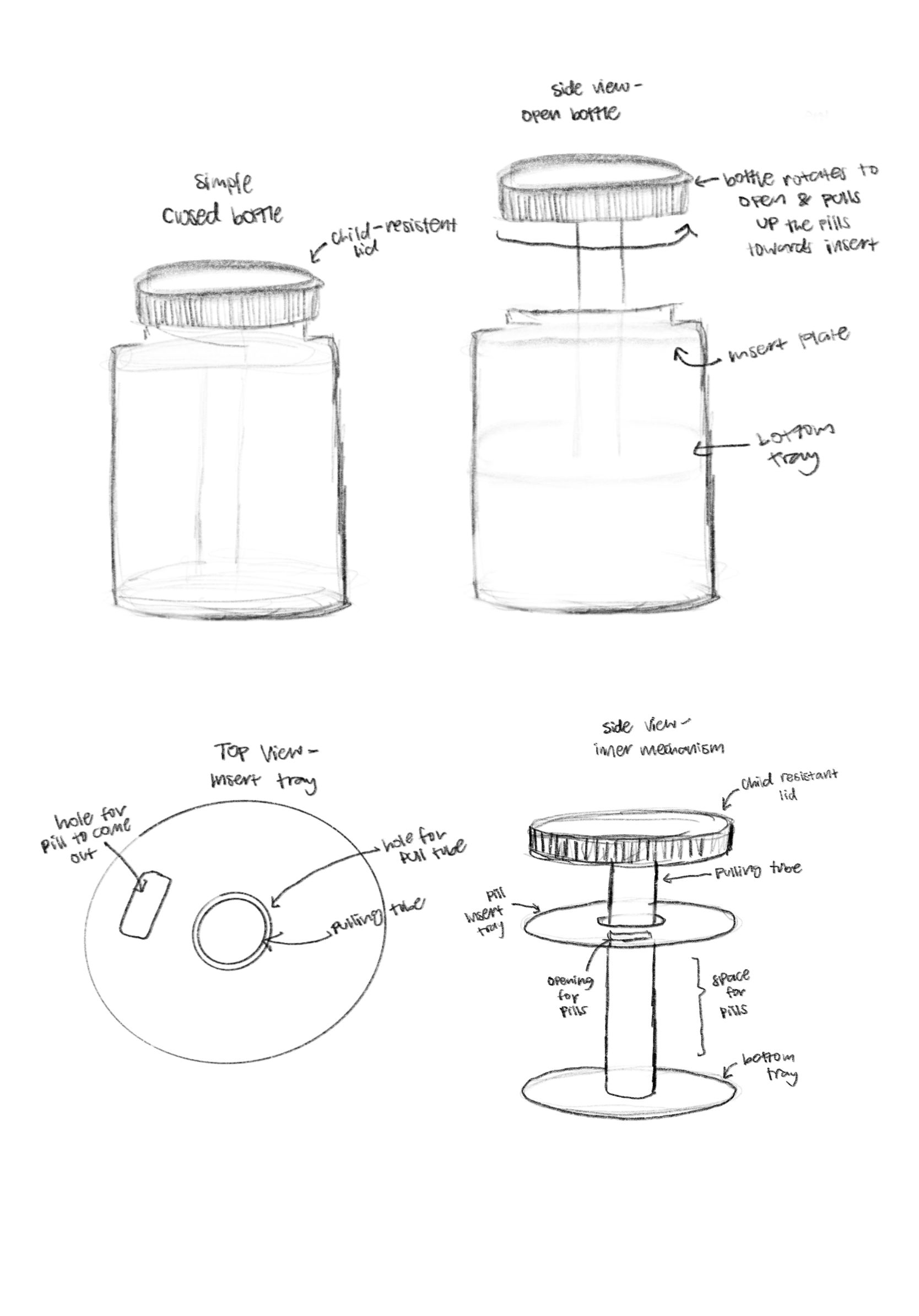

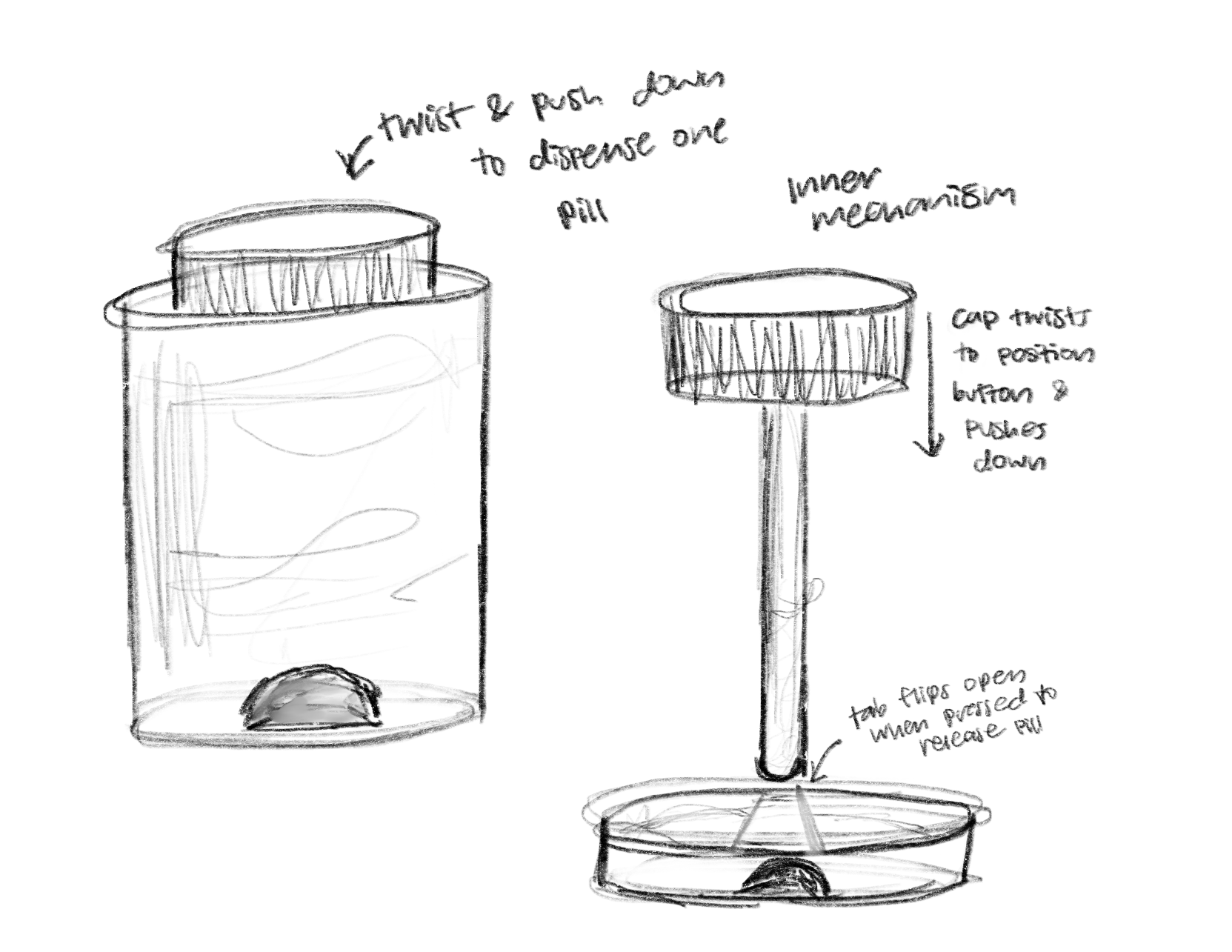

Initial Sketches
3D Exploration

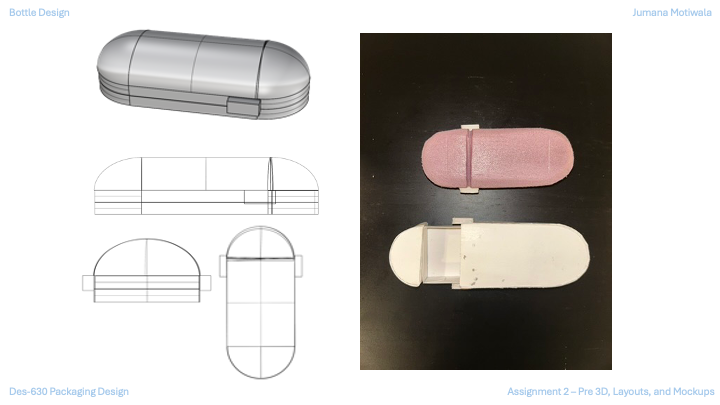

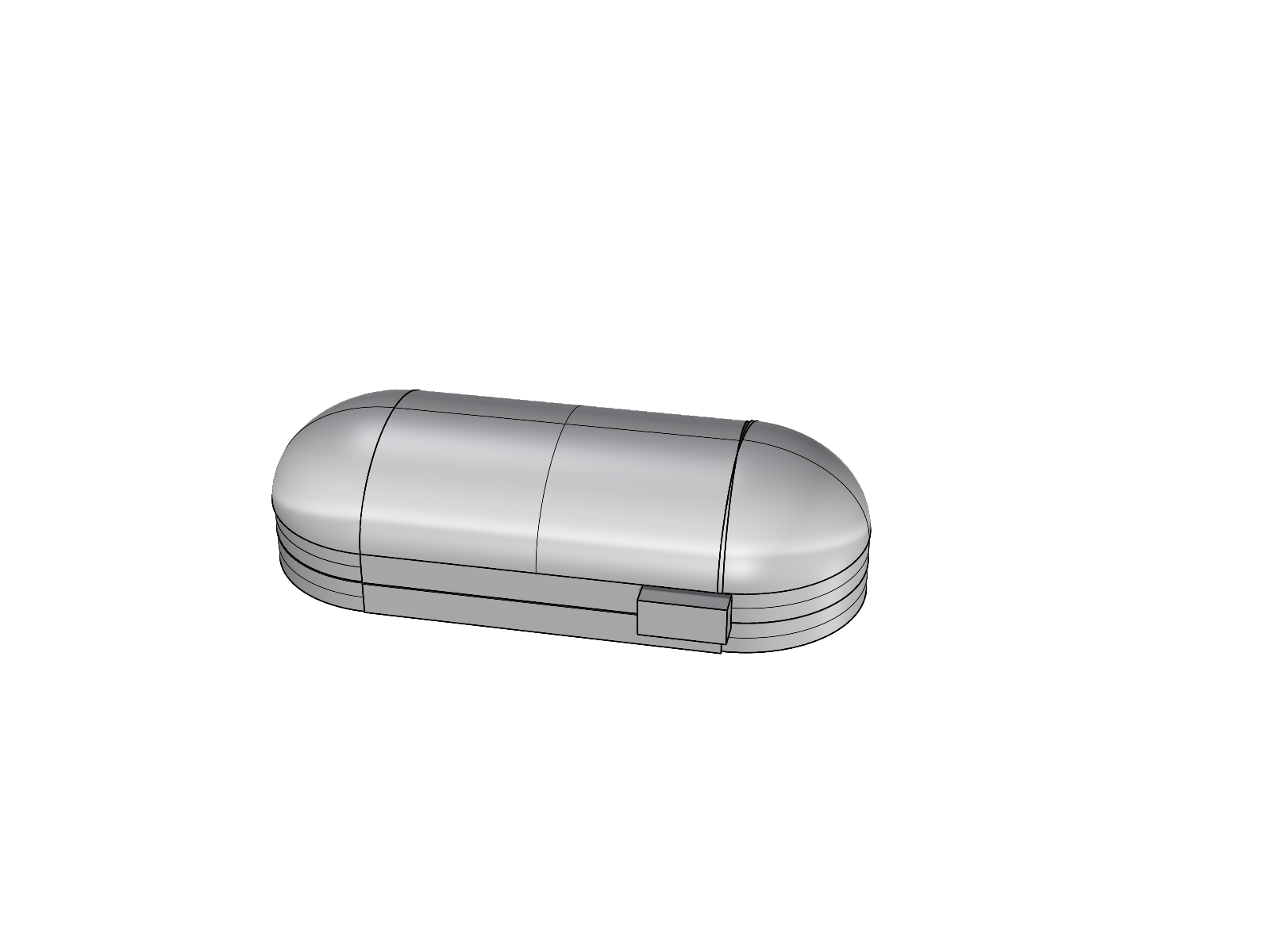

Pill Shaped Bottle
This concept explores a drawer-style opening system activated by pressing both side buttons simultaneously, revealing the pills inside. While not designed to dispense one pill at a time, the mechanism helps prevent accidental spills and creates a more controlled dispensing experience.

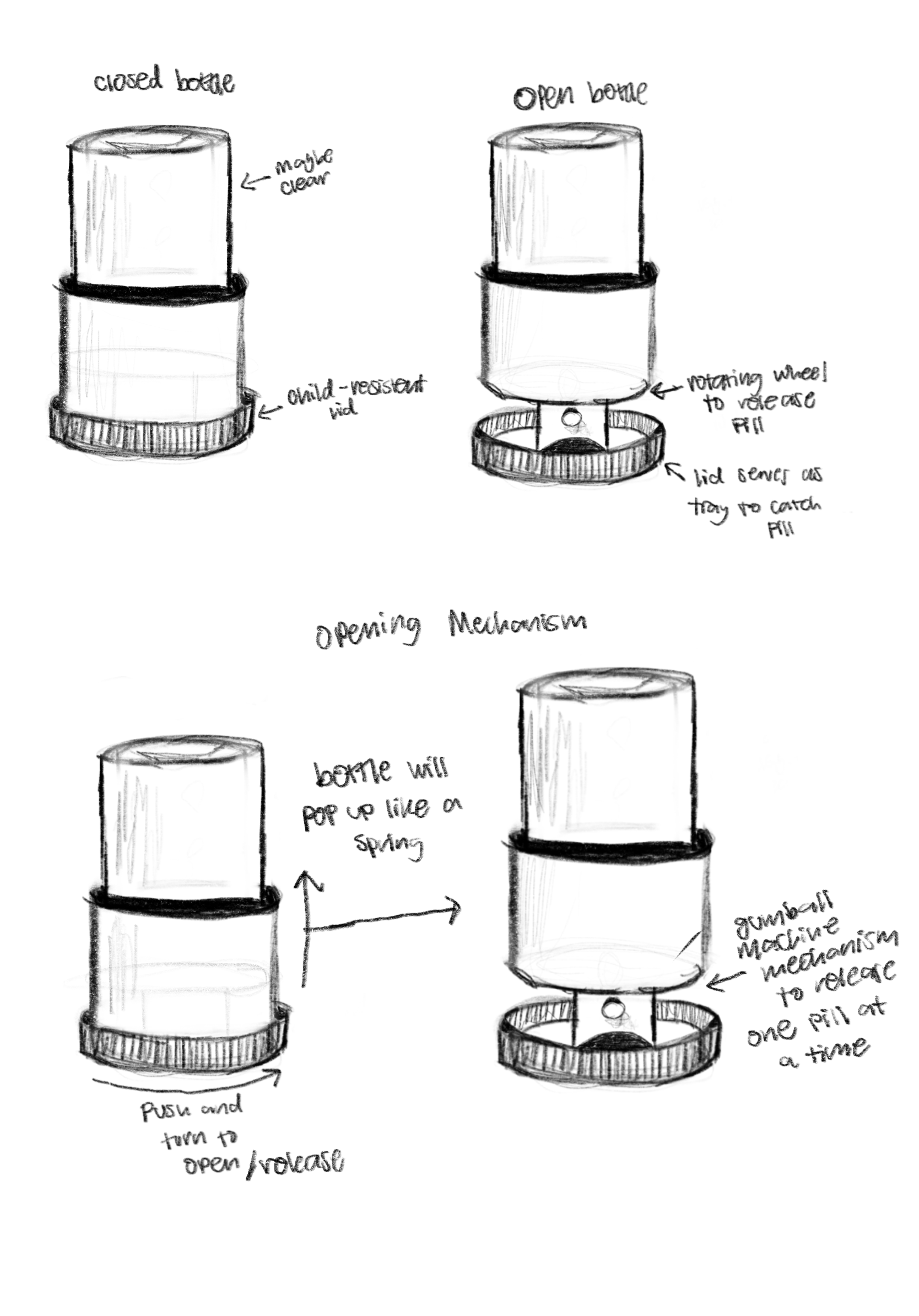

"Gumball" Dispenser Bottle

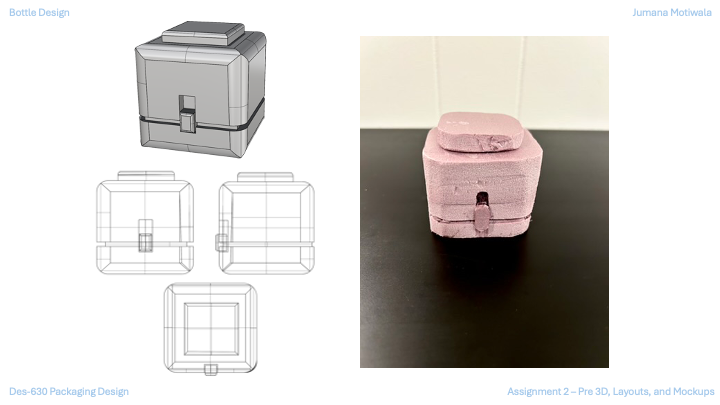

This concept explores a gumball machine-inspired dispensing mechanism where sliding the lock upward reveals a tray designed to release a single pill at a time.

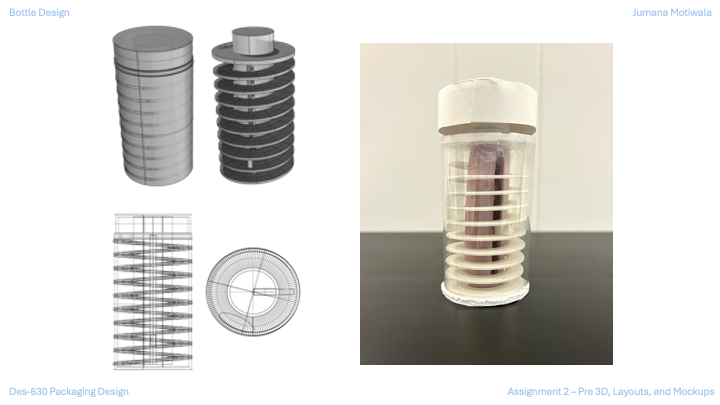

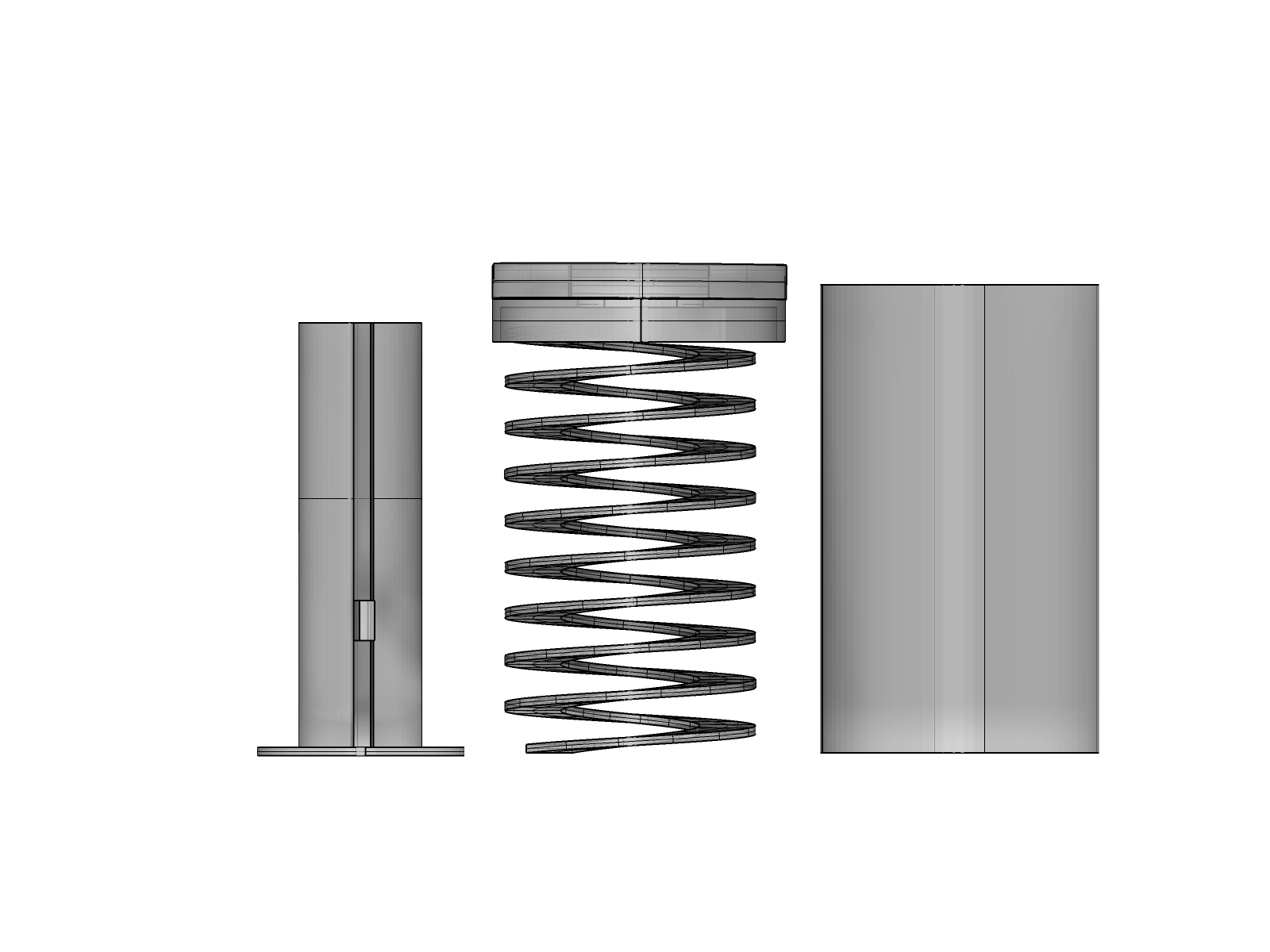

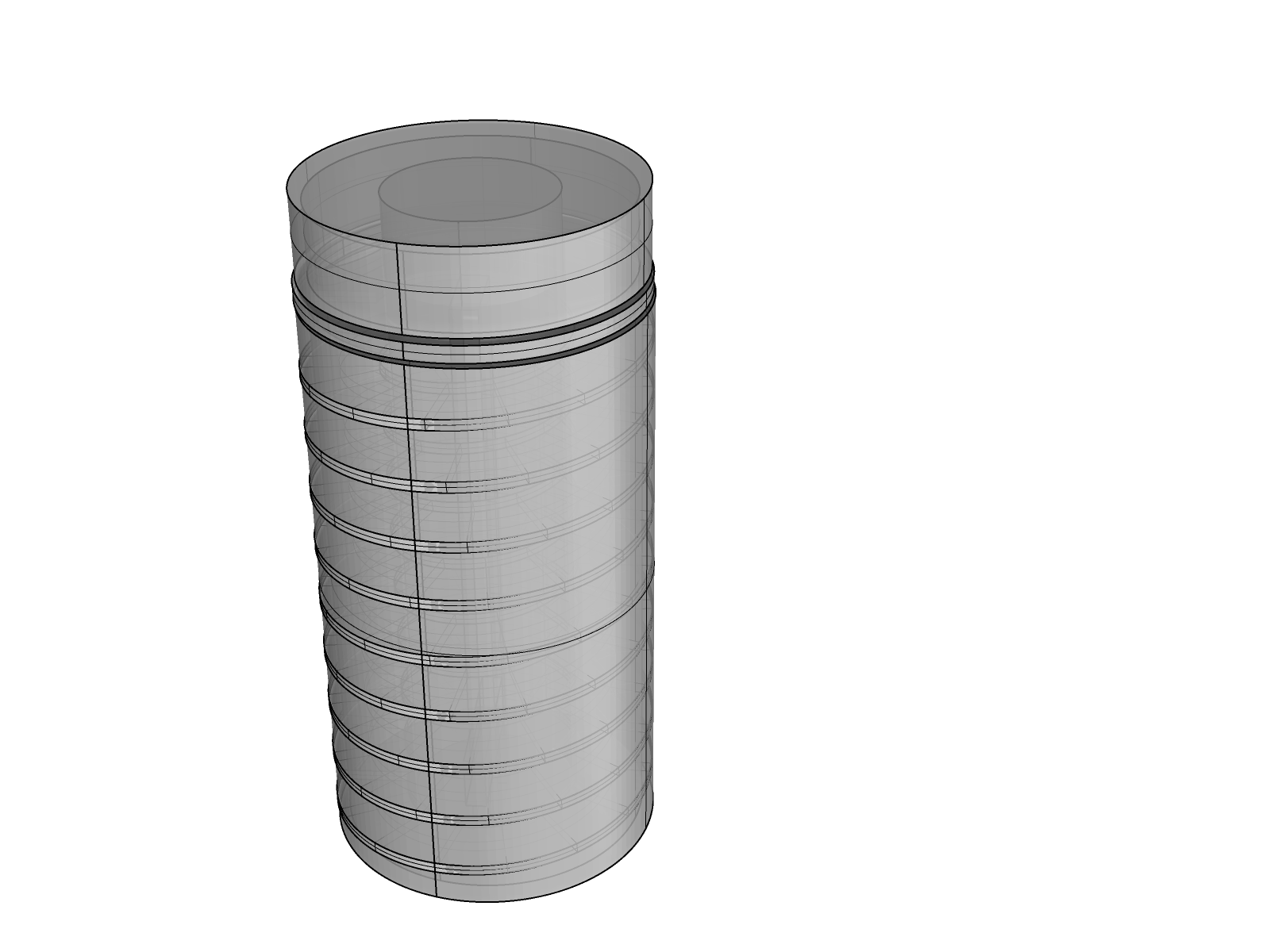

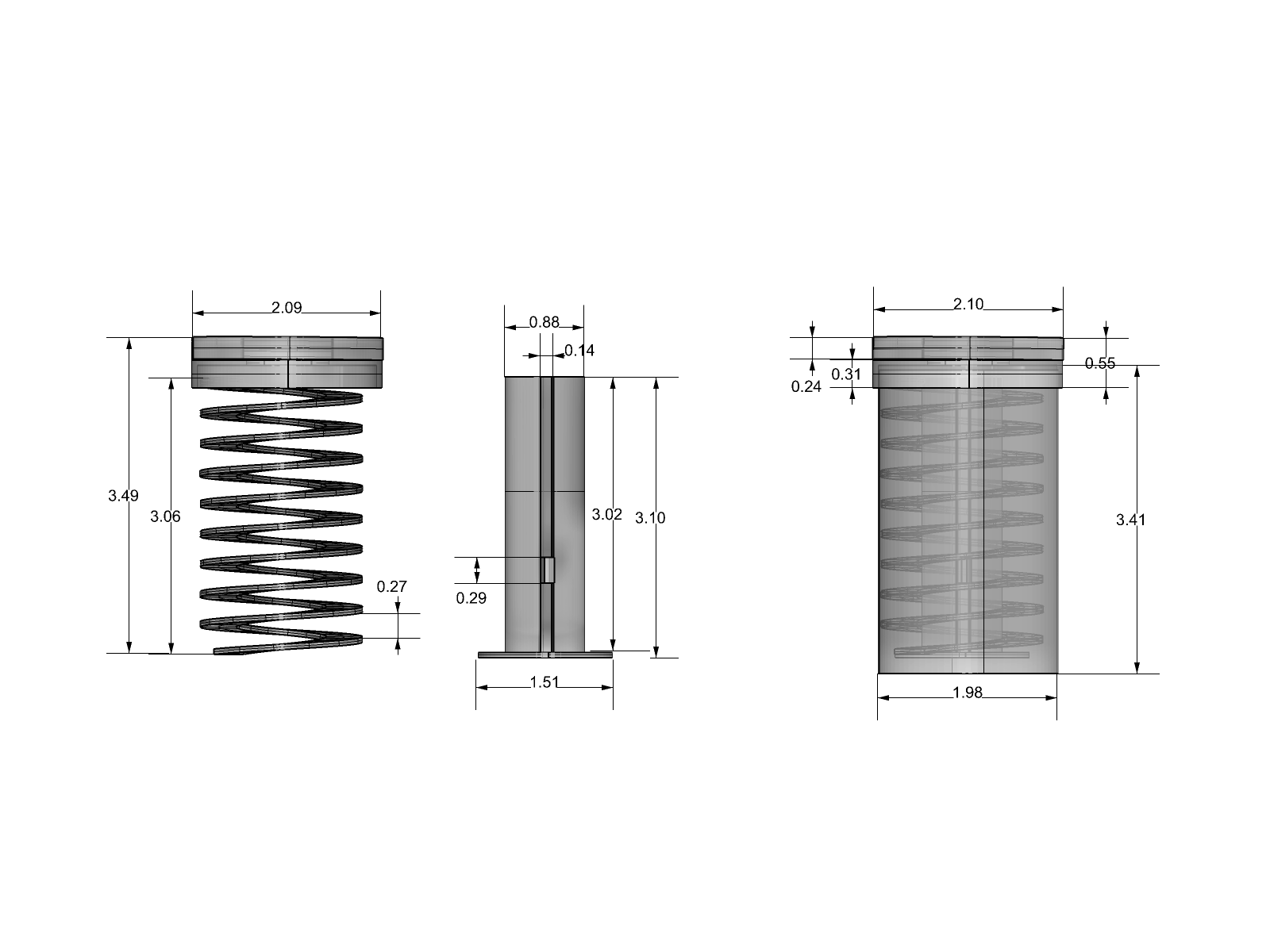

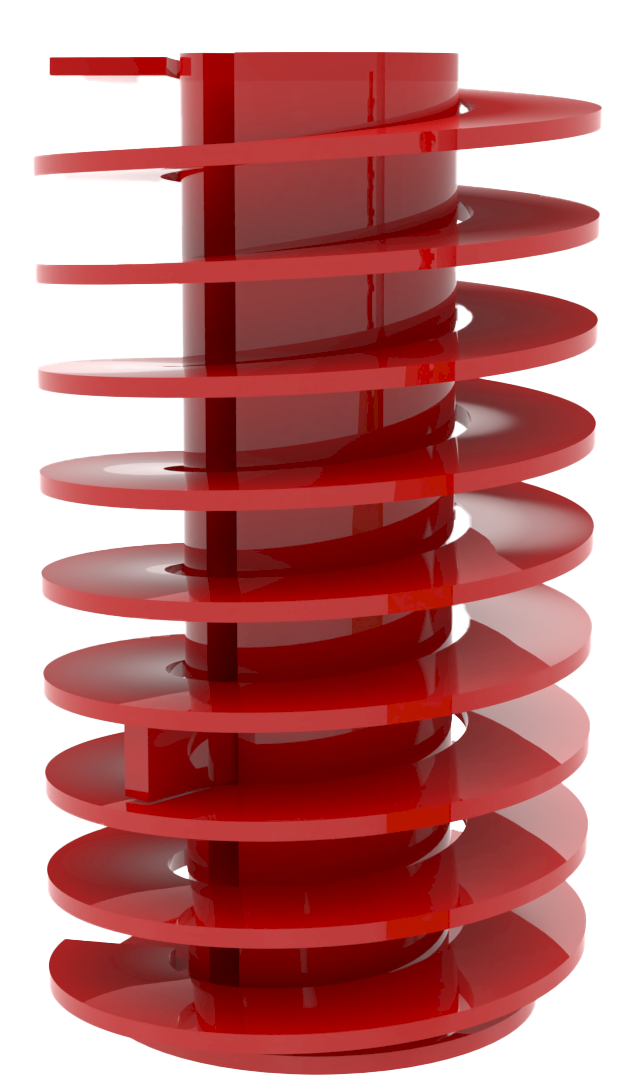

Screw Bottle
Inspired by the helical structure of a screw, this concept explores a twisting dispensing mechanism that guides pills toward the opening one at a time through an internal pushing system.

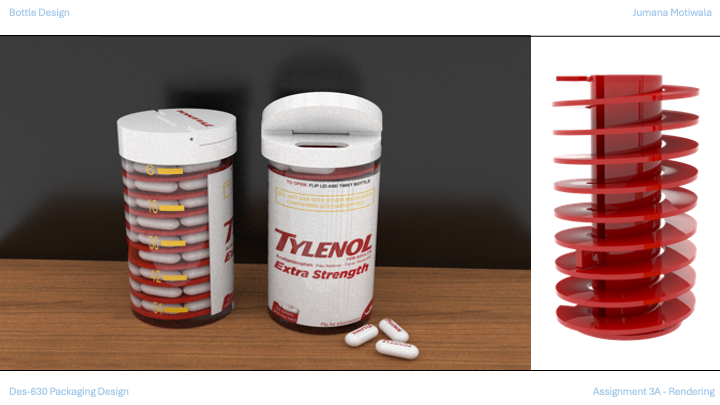

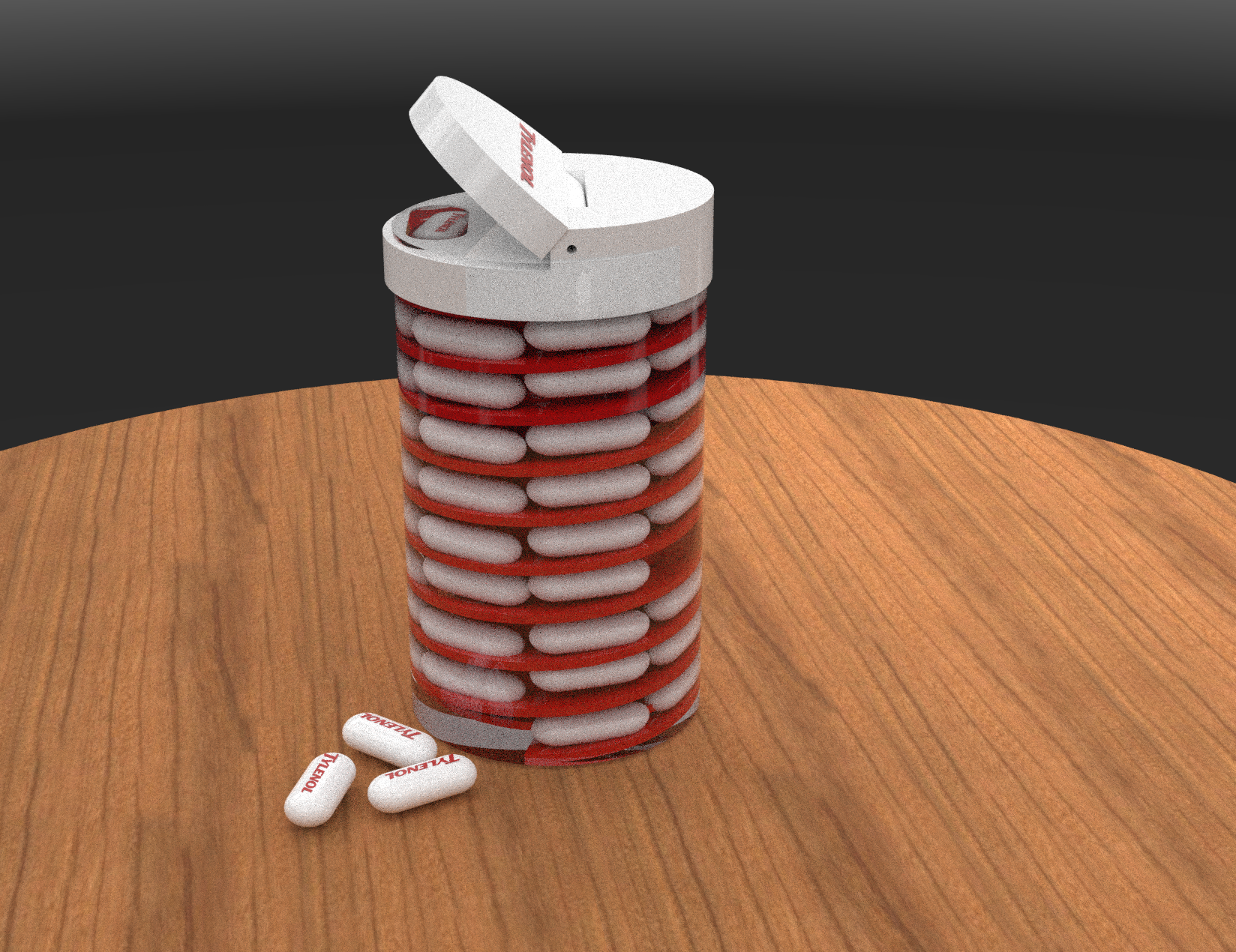

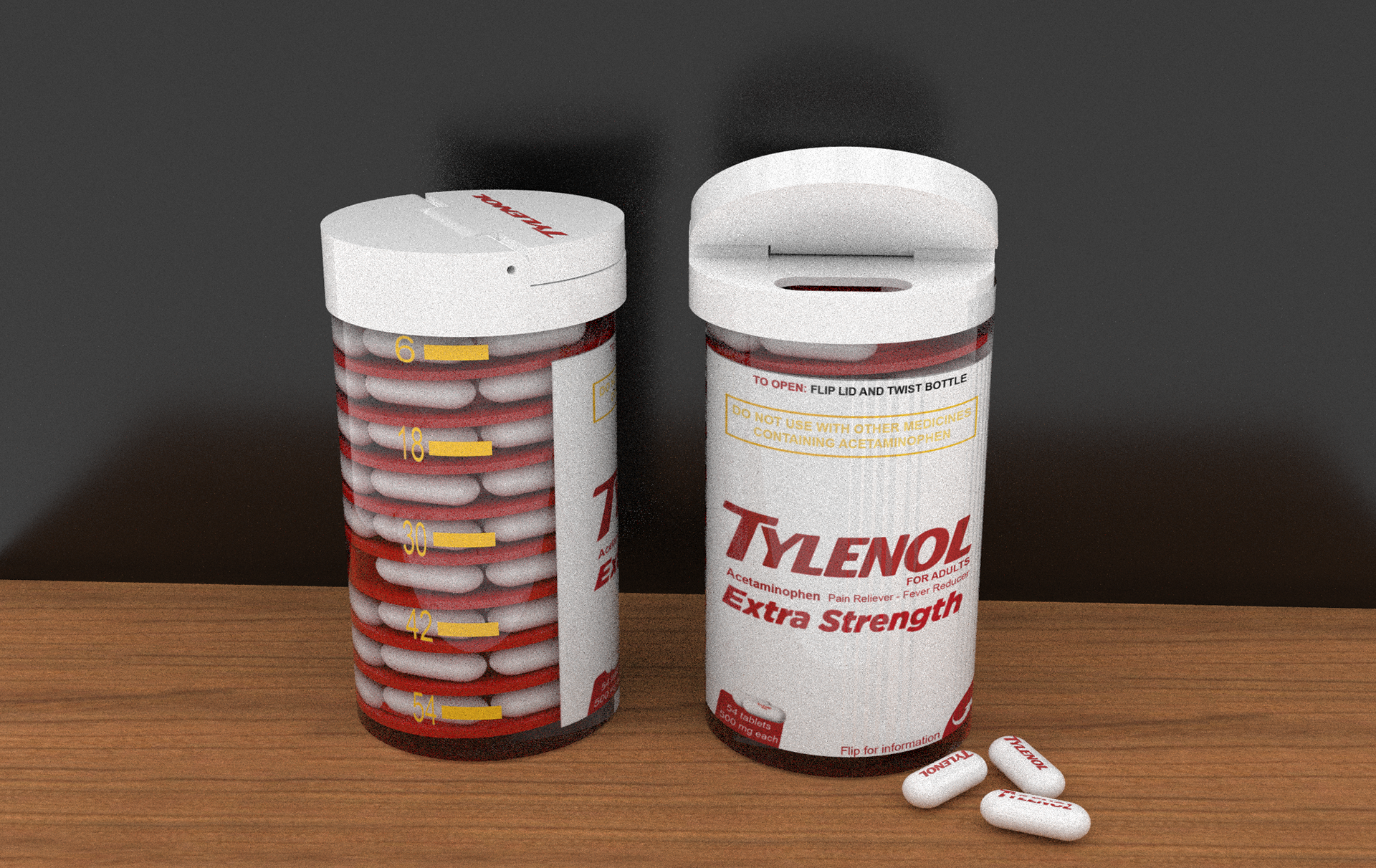

Renders

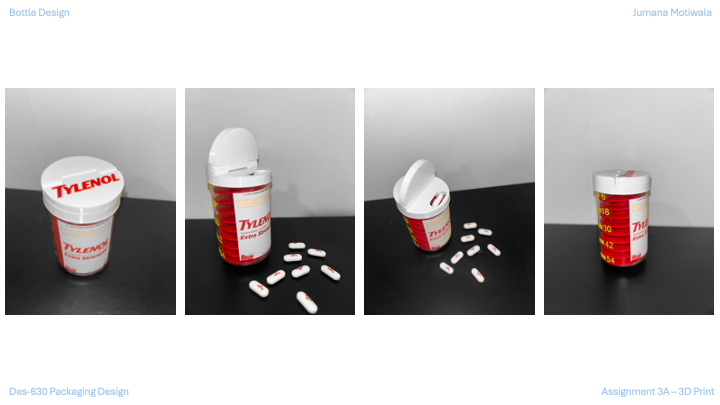

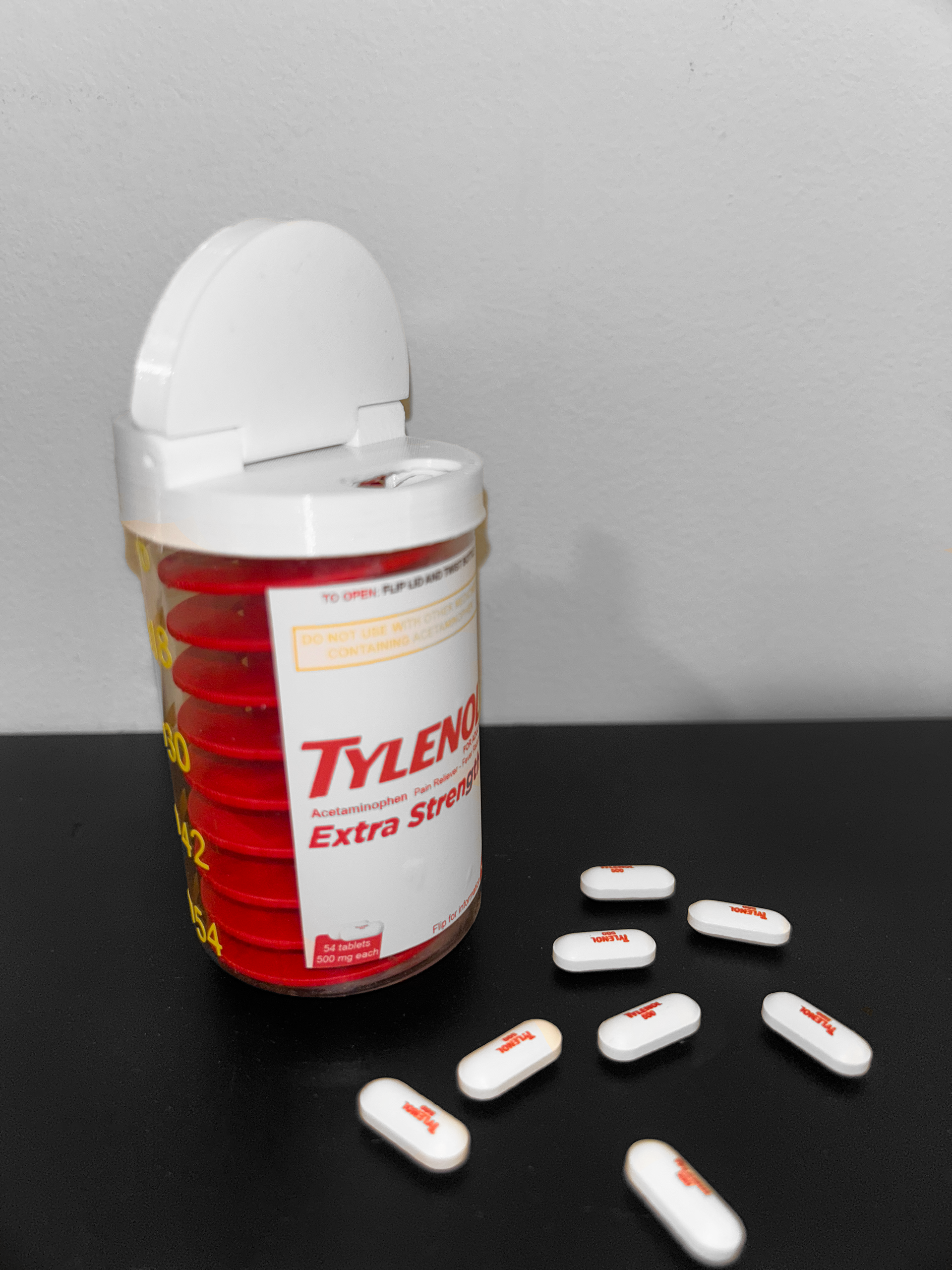

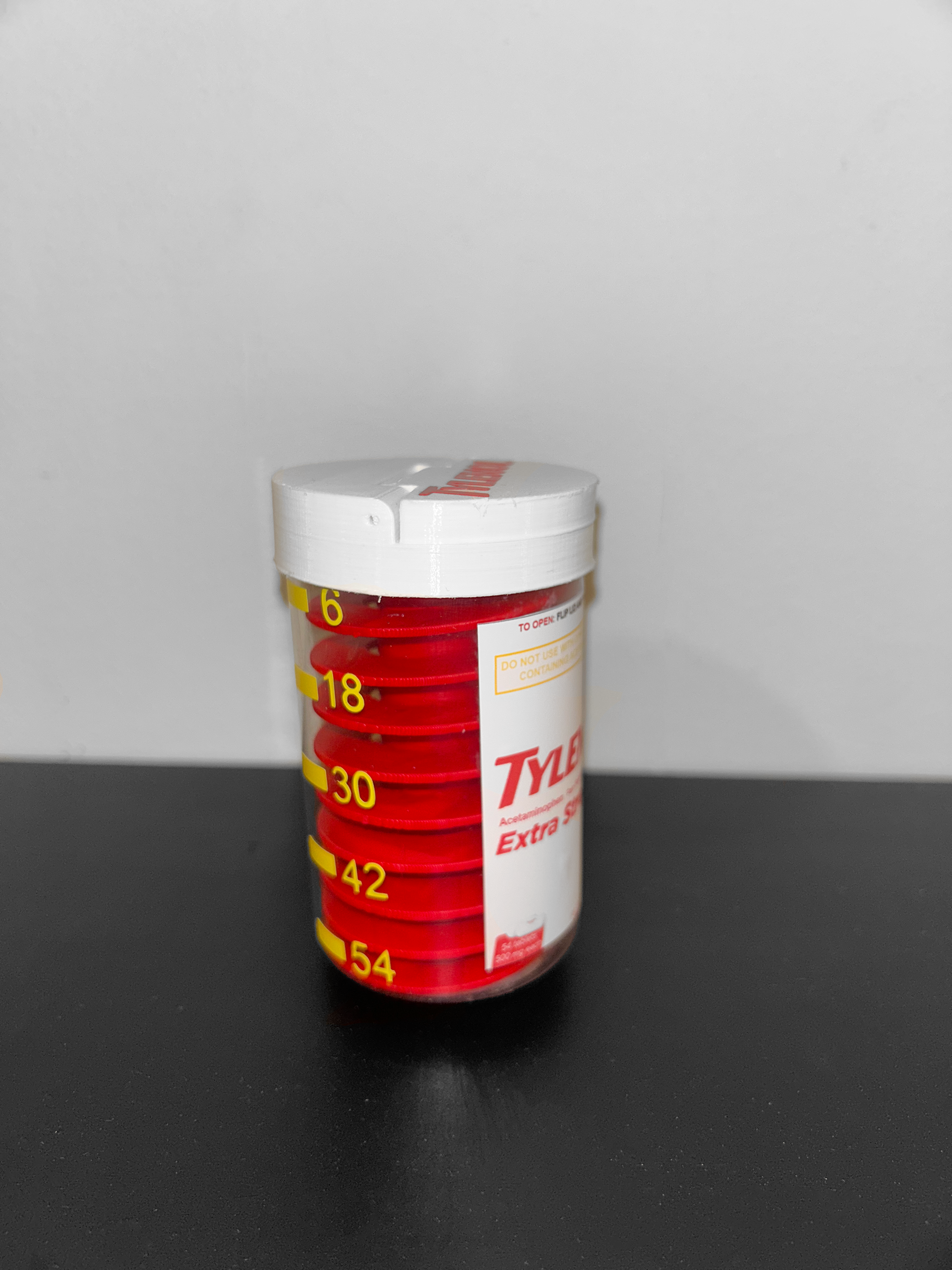

Physical Mockup

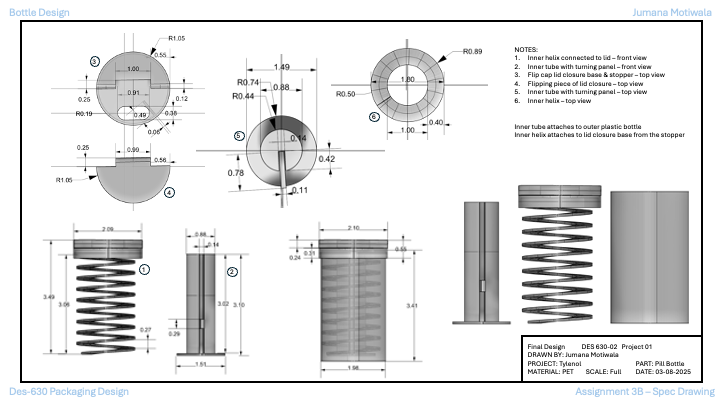

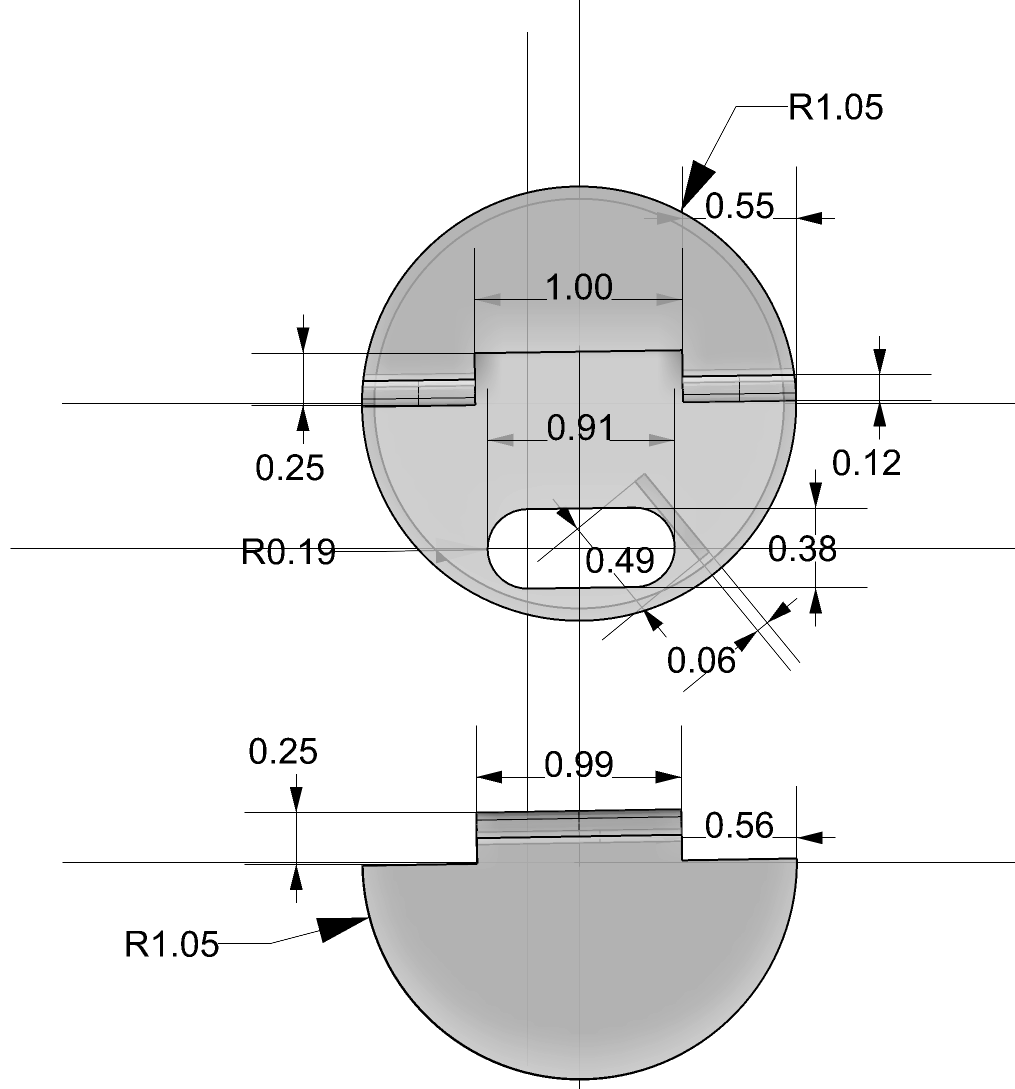

Technical Drawings
